Artifact Components

Artifacts are structured components that capture and store source information when agents interact with tools or other agents. They act as a record-keeping system, automatically documenting where information comes from during tool and agent interactions.

How Artifacts Work

When an agent uses a tool (whether that's another agent or a utility tool), the response is automatically parsed to create artifacts. These artifacts store:

The source of the information (tool/agent used)
The relevant content from the response
Metadata about the interaction

Defining Artifact Components

Artifact components are defined using the artifactComponent builder function. We recommend using Zod schemas for type safety and better developer experience.

Quick Start: Citation artifacts are automatically included when you create a new project with npx @inkeep/create-agents, providing a ready-to-use example.

import { artifactComponent } from '@inkeep/agents-sdk';
import { z } from 'zod';
import { preview } from '@inkeep/agents-core';

export const citation = artifactComponent({
  id: "citation",
  name: "citation",
  description: "Structured factual information extracted from search results",
  props: z.object({
    title: preview(z.string().describe("Title of the source document")),
    url: preview(z.string().describe("URL of the source document")),
    record_type: preview(
      z.string().describe("Type of record (documentation, blog, guide, etc.)")
    ),
    content: z
      .array(
        z.object({
          type: z.string().describe("Type of content (text, image, video, etc.)"),
          text: z.string().describe("The actual text content"),
        })
      )
      .describe("Array of structured content blocks extracted from the document"),
  }),
});

JSON Schema is also supported. Set inPreview: true on properties instead of using preview().

Schema Requirements

Critical: Artifact schemas must match your tool's output structure. The system uses JMESPath selectors on JSON - it cannot extract from free text.

// ❌ WRONG: Tool returns text, schema expects structured data
// Tool output: { result: { content: [{ text: "Weather: Sunny, 75°F" }] } }
props: z.object({
  temperature: z.number(), // ❌ Cannot extract number from text
  condition: z.string()    // ❌ Cannot extract condition from text
})

// ✅ CORRECT: Tool returns structured data matching schema
// Tool output: { result: { temperature: 75, condition: "Sunny" } }
props: z.object({
  temperature: z.number(),
  condition: z.string()
})

Use OpenTelemetry traces to debug schema validation issues.

Preview Fields

Use preview() to mark fields for immediate availability. The preview() helper automatically sets inPreview: true in the generated schema.

Preview fields are:

Shown to other agents for reasoning
Streamed in real-time to clients (Vercel AI SDK)
Auto-rendered by Inkeep's widget (citations as interactive cards)
Available immediately in UI (full artifact loads on-demand)

Non-preview fields require explicitly fetching the full artifact.

No schema? Omit props to save the entire tool result without filtering.

Artifact Creation

When an agent uses a tool:

The tool processes the request and returns a response
The agent decides whether to create an artifact from the tool response
If created, the artifact is parsed according to the artifact component schema
The artifact can be associated with any data components that reference this information

Artifacts vs Data Components

Artifacts and Data Components are different:

Artifacts: Citations/sources from tool results stored in the database
Data Components: UI elements agents output in responses (Text, Fact, etc.)

Artifacts provide the source citations that back up information in data components.

Using in Agents

After defining your artifact component, use it in an agent:

import { agent } from '@inkeep/agents-sdk';
import { citation } from './artifact-components/citation';

const searchAgent = agent({
  id: "search-agent",
  canUse: () => [searchTool],
  prompt: "Search for information and cite sources using artifacts.",
  artifactComponents: () => [citation],
});

Citation Artifacts

Citation artifacts that are named citation and have title and url preview fields are automatically rendered as interactive cards by Inkeep's widget library. This provides source attribution and allows users to verify information at the source.

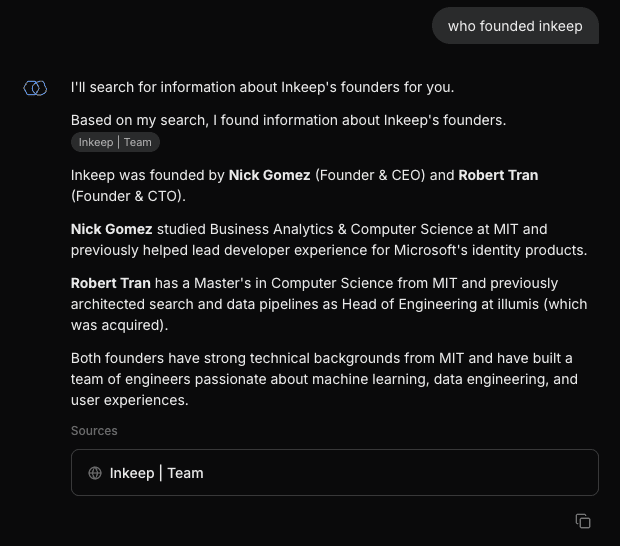

Citation artifact rendered as an interactive card in the Inkeep widget showing source attribution

Example Flow

Here's a complete example with inline artifact component definition:

import { agent } from '@inkeep/agents-sdk';
import { z } from 'zod';
import { preview } from '@inkeep/agents-core';

const searchAgent = subAgent({
  id: "search",
  canUse: () => [searchTool],
  prompt: "Search for information and cite sources using artifacts.",
  artifactComponents: [
    {
      id: "citation",
      name: "citation",
      description: "Search result document",
      props: z.object({
        title: preview(z.string().describe("Document title")),
        url: preview(z.string().describe("Document URL")),
        content: z.string().describe("Document content"),
      }),
    },
  ],
});

No Schema Example

const rawDataAgent = subAgent({
  id: "raw-data",
  canUse: () => [apiTool],
  prompt: "Fetch data and save complete responses.",
  artifactComponents: [
    {
      id: "api-response",
      name: "API Response",
      description: "Complete API response data",
      // No props - saves entire tool result
    },
  ],
});

Example flow:

Agent uses search tool and gets results
Agent decides to create an artifact citing the source document
Artifact is stored with preview fields (title, url) shown to other agents
Other agents can reference this artifact or get full content when needed
