Tool Approvals

Tool approvals allow you to configure specific tools to require explicit user confirmation before execution. This provides enhanced control over potentially sensitive or destructive operations.

Overview

When a tool is configured to require approval:

Agent pauses execution when the tool is called
Approval request emitted in the data stream with tool details
User sees approval UI with tool name, arguments, and approve/deny options
Execution continues only after user approval
Tool executes normally with the original arguments

Configuration

SDK Configuration

Configure tool approvals using the McpToolSelection format when defining agent tools:

import { agent, tool } from "@inkeep/agents-sdk";

// Configure tools with approval requirements
const weatherAgent = agent("weather-forecast")
  .prompt("You help users get weather information.")
  .canUse(
    tool("weather-mcp").with({
      selectedTools: [
        "get_current_weather", // No approval required
        {
          name: "get_weather_forecast",
          needsApproval: true, // Requires user approval
        },
        {
          name: "delete_weather_data",
          needsApproval: true, // Requires user approval
        },
      ],
    })
  );

Visual Builder Configuration

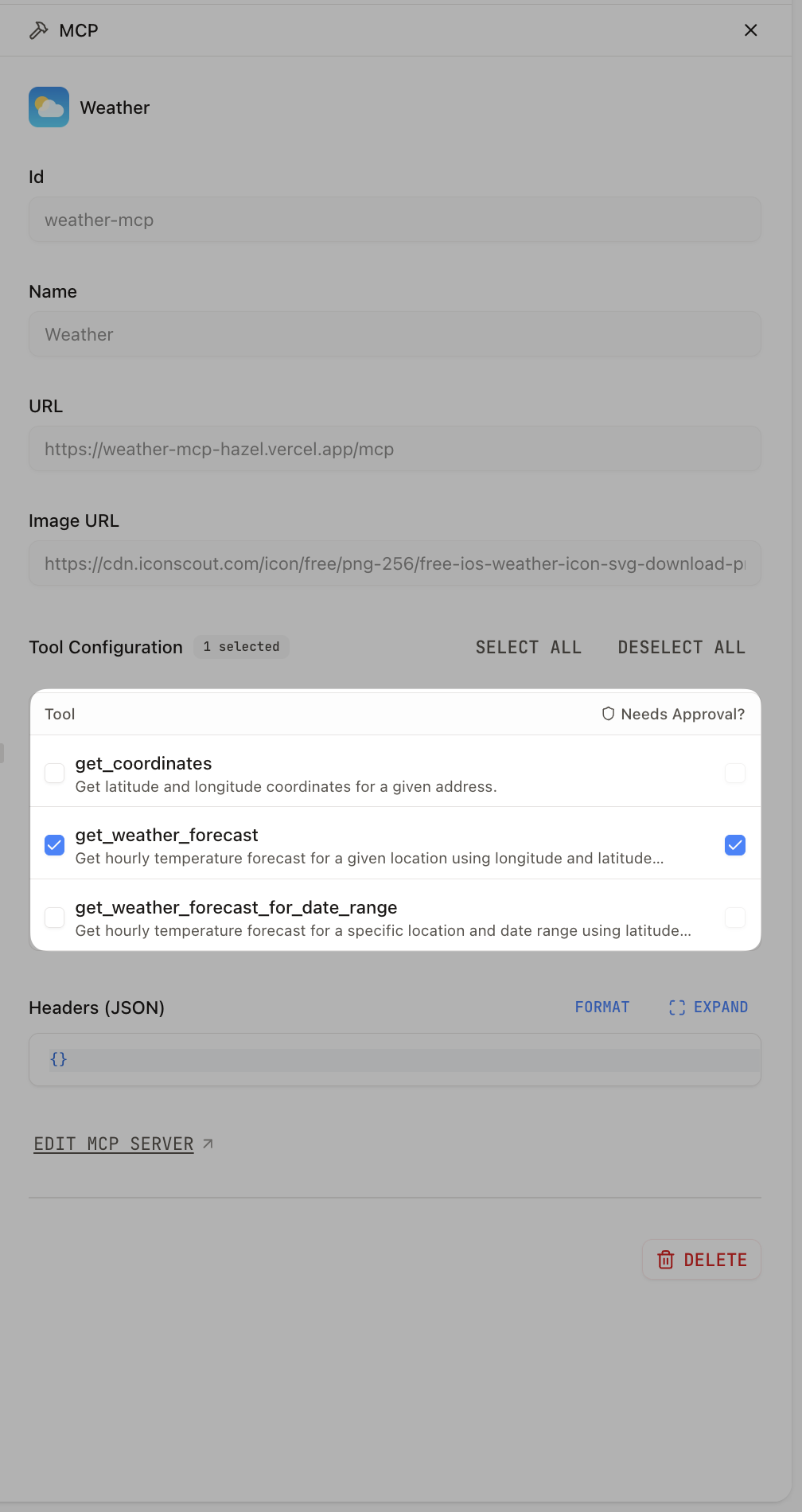

In the visual builder, configure tool approvals using the unified tool grid:

Navigate to your agent in the visual builder
Select an MCP tool node connected to your agent
Use the tool configuration grid with two columns:
- Tool column: Check to select/deselect tools
- Approval column: Check to require approval (only enabled for selected tools)

Copy Trace button in the timeline view for exporting conversation traces

Runtime Behavior

Agent Execution Flow

When an agent encounters a tool requiring approval:

Approval Flow:

1. Agent calls tool → 2. Execution pauses → 3. Approval request emitted
                                                           ↓
6. Tool executes ← 5. Execution resumes ← 4. User approves

Denial Flow:

1. Agent calls tool → 2. Execution pauses → 3. Approval request emitted
                                                           ↓
6. Returns denial message ← 5. Execution resumes ← 4. User denies

The agent receives proper feedback in both cases, ensuring natural conversation flow.

Event Stream Integration

Tool approval requests appear in the data stream as enhanced tool_call events:

{
  "type": "data-operation",
  "data": {
    "type": "tool_call",
    "label": "Tool call: delete_weather_data",
    "details": {
      "timestamp": 1726247200000,
      "subAgentId": "weather-agent",
      "data": {
        "toolName": "delete_weather_data",
        "input": {
          "location": "San Francisco",
          "date_range": "2024-01-01_to_2024-12-31"
        },
        "toolCallId": "call_abc123def456",
        "needsApproval": true,
        "conversationId": "conv_xyz789"
      }
    }
  }
}

Key fields for approval handling:

needsApproval: true - Indicates approval is required
toolCallId - Unique identifier for this tool execution
conversationId - Conversation context for the approval request
input - Tool arguments for user review

Tool Results

Approved tools execute normally and return their actual results.

Denied tools return a clear message to the agent:

{
  "type": "tool_result",
  "data": {
    "toolName": "delete_weather_data",
    "output": "User denied approval to run this tool: Operation too risky",
    "toolCallId": "call_abc123def456"
  }
}

This allows the agent to understand the denial and respond appropriately to the user.

Approval API

Endpoint

POST /api/tool-approvals

Authentication

Requires the same API key authentication as chat endpoints:

Authorization: Bearer YOUR_API_KEY

Request Format

{
  "conversationId": "conv_xyz789",
  "toolCallId": "call_abc123def456",
  "approved": true,
  "reason": "User confirmed the operation" // Optional
}

Parameters:

conversationId - The conversation context (from tool_call event)
toolCallId - The specific tool execution to approve/deny (from tool_call event)
approved - true to approve, false to deny
reason - Optional explanation for the decision

Response Format

Success (200):

{
  "success": true,
  "message": "Tool execution approved"
}

Error (404):

{
  "error": "Tool call not found or already processed"
}

Example Usage

curl -X POST http://localhost:3003/api/tool-approvals \
  -H "Authorization: Bearer YOUR_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "conversationId": "conv_xyz789",
    "toolCallId": "call_abc123def456",
    "approved": true,
    "reason": "User confirmed deletion is safe"
  }'

Client Integration

Detecting Approval Requests

Monitor the event stream for tool_call events with needsApproval: true:

// Example using EventSource for SSE
const eventSource = new EventSource("<RUN_API_URL>/api/chat");

eventSource.onmessage = (event) => {
  const { type, data } = JSON.parse(event.data);

  if (
    type === "data-operation" &&
    data.type === "tool_call" &&
    data.details.data.needsApproval
  ) {
    const { toolName, input, toolCallId, conversationId } = data.details.data;

    // Show approval UI to user
    showApprovalUI({
      toolName,
      arguments: input,
      onApprove: () => sendApproval(conversationId, toolCallId, true),
      onDeny: () => sendApproval(conversationId, toolCallId, false),
    });
  }
};

Sending Approval Responses

async function sendApproval(
  conversationId,
  toolCallId,
  approved,
  reason = null
) {
  try {
    const response = await fetch("<RUN_API_URL>/api/tool-approvals", {
      method: "POST",
      headers: {
        Authorization: `Bearer ${API_KEY}`,
        "Content-Type": "application/json",
      },
      body: JSON.stringify({
        conversationId,
        toolCallId,
        approved,
        ...(reason && { reason }),
      }),
    });

    if (!response.ok) {
      throw new Error(`Approval failed: ${response.statusText}`);
    }

    const result = await response.json();
    console.log("Approval processed:", result.message);
  } catch (error) {
    console.error("Failed to process approval:", error);
  }
}

React Integration Example

import { useChat } from 'ai/react';

export function ChatWithApprovals() {
  const { messages, input, handleInputChange, handleSubmit } = useChat({
    api: '/api/chat',
    headers: {
      'x-emit-operations': 'true', // Enable data operations
    },
  });

  const handleApproval = async (toolCallId: string, conversationId: string, approved: boolean) => {
    await fetch('/api/tool-approvals', {
      method: 'POST',
      headers: { 'Content-Type': 'application/json' },
      body: JSON.stringify({
        conversationId,
        toolCallId,
        approved,
      }),
    });
  };

  return (
    <div>
      {/* Chat messages */}
      <div>
        {messages.map((message) => (
          <div key={message.id}>
            <strong>{message.role}:</strong> {message.content}
            {/* Render tool approval buttons inline */}
            {message.parts?.map((part, index) => {
              if (
                part.type === 'data-operation' &&
                part.data.type === 'tool_call' &&
                part.data.details.data.needsApproval
              ) {
                const { toolName, toolCallId, conversationId } = part.data.details.data;

                return (
                  <div key={index}>
                    <button
                      type="button"
                      onClick={() => handleApproval(toolCallId, conversationId, true)}
                    >
                      Approve {toolName}
                    </button>
                    <button
                      type="button"
                      onClick={() => handleApproval(toolCallId, conversationId, false)}
                    >
                      Deny
                    </button>
                  </div>
                );
              }
              return null;
            })}
          </div>
        ))}
      </div>

      {/* Chat input */}
      <form onSubmit={handleSubmit}>
        <input value={input} onChange={handleInputChange} placeholder="Ask me anything..." />
        <button type="submit">Send</button>
      </form>
    </div>
  );
}
